| Nome | Descrição do produto | Quadro |
AS400 Card
Item Number: 10120515
EAN: 4260074974300 | AS/400 Cards provide clean dry contacts for remote shutdown and monitoring of a UPS. It is frequently used along with PLCs and signal control panels. Information delivered are UPS failure, Alarm, Main Fail, Bypass, Battery Low, UPS On. Using AS/400 it possible to shutdown UPS remotely. Solution requires external 12V/24VDC source for a high signal.
Dimensions are 85 x 52 x 26 mm 35g
Pin assig ... |  |

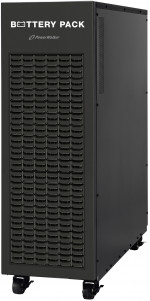

BP A240TB-40x9Ah
Item Number: 10120587
EAN: 4260074977677 | BP uses empty housing number 10134020
Battery Pack for VFI CP 3/3 (40x9Ah, 240VDC). Includes 2 strings of 20 batteries, each 12V/9Ah capacity. Battery pack operates on 240VDC nominal voltage. Dimensions are H:576mm x W:250mm x D:592mm. Weight: 125kg.
Cable 91015050 Anen SA120B2-H to Anen SA120B2-H is included.
For compatibility with VFI 30000 CP 3/3 the cable needs to be replaced by ... |  |

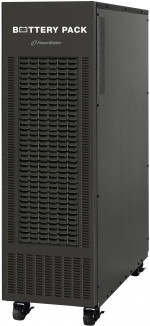

BP A240TB-60x9Ah
Item Number: 10120588
EAN: 4260074977684 | BP uses empty housing number 10134021
Battery Pack for VFI CP 3/3 (60x9Ah, 240VDC). Includes 3 strings of 20 batteries, each 12V/9Ah capacity. Battery pack operates on 240VDC nominal voltage. Dimensions are H:576mm x W:250mm x D:830mm. Weight: 190kg.
Cable 91015006 Anen SA175B2-H to Anen SA175B2-H is included.
For compatibility with VFI 10000-20000 CP 3/3 the cable needs to be repla ... | |
BP A240TB-80x9Ah
Item Number: 10120590
EAN: 4260074977707 | BP uses empty housing number 10134023
Battery Pack for VFI CP 3/3 (80x9Ah, 240VDC). Includes 4 strings of 20 batteries, each 12V/9Ah capacity. Battery pack operates on 240VDC nominal voltage. Dimensions are H:826mm x W:250mm x D:815mm. Weight: 242kg.
Cable 91015006 Anen SA175B2-H to Anen SA175B2-H is included.
For compatibility with VFI 10000-20000 CP 3/3 the cable needs to be repla ... |  |
EMD for SNMP Manager
Item Number: 10120544
EAN: 4260074974966 | EMD (environmental monitoring device) for SNMP Manager is a connectivity devices for remote monitoring of temperature and humidity. It provides dry contacts to communicate with compatible devices such as security system or alarm system. ... |  |
Modbus Card 2
Item Number: 10120565
EAN: 4260074975703 | The PowerWalker Modbus Card is a communication accessory that provides a pair of RJ-45 interface for remote monitoring and controlling of UPSs. It converts standard RS232 signal to RS232 signal with specified address, which allows controlling many UPSs from one computer. You can setup a desired address with jumpers (range 0-255).
Modbus Card for: VFI LCD, VFI CG, VFI C, VFI RM, VFI RMG, VFI CRM ... |  |
Charger EC240-4A
Item Number: 10136005
EAN: 4260074978087 | External charger in a stand-alone housing. Works parallel to the UPS. You can connect your battery pack via connector (240VDC). Charging current is 4A. ... |  |
Charger EC240-8A
Item Number: 10136006
EAN: 4260074978094 | External charger in a stand-alone housing. Works parallel to the UPS. You can connect your battery pack via connector (240VDC). Charging current is 8A. ... |  |
Charger EC240-12A
Item Number: 10136007
EAN: 4260074978100 | External charger in a stand-alone housing. Works parallel to the UPS. You can connect your battery pack via connector (240VDC). Charging current is 12A. ... |  |
Charger EC240-24A
Item Number: 10136008
EAN: 4260074978117 | External charger in a stand-alone housing. Works parallel to the UPS. You can connect your battery pack via connector (240VDC). Charging current is 24A. ... |  |
SNMP Manager
Item Number: 10120505
EAN: 4260074974034 | SNMP Cards offer IP Address and Web Interface for most convenient monitoring. SNMP modules allows remote monitor and manage multiple UPSs from anywhere with internet access. Integrated web access will leverage internet capability of SNMP card to remotely program or shut down UPSs. Equipped with SNMP card, power conditions of all UPSs can be monitored anytime/anywhere even through the UPS units are ... |  |
SNMP Box
Item Number: 10131000
EAN: 4260074977424 | PowerWalker SNMP Box is a communication solution for multiple UPS monitoring and control. Integrated web access will leverage internet capability of SNMP to remotely program or shut down UPSs. Equipped with SNMP Box, power conditions of all UPSs can be monitored anytime/anywhere even though the UPS units are located in different floors. Besides, this module also come equipped with easy-to-update f ... |  |
PWB12-7
Item Number: 91010090
EAN: 4260074978131 | 7Ah general purpose battery.
PowerWalker PWB12 battery series is designed to work with UPS solutions. It is a high quality valve-regulated lead acid battery with high corrosion resistance and special exhaust structure. The sealing technology with high discharge capacity offers long life, reliability and safety. Batteries are flexible for installation and maintenance and easy to handle.
< ... |  |
PWB12-9
Item Number: 91010091
EAN: 4260074978148 | 9Ah general purpose battery.
PowerWalker PWB12 battery series is designed to work with UPS solutions. It is a high quality valve-regulated lead acid battery with high corrosion resistance and special exhaust structure. The sealing technology with high discharge capacity offers long life, reliability and safety. Batteries are flexible for installation and maintenance and easy to handle.
< ... |  |
Parallel Kit for VFI 30000CP 3/3
Item Number: 10139002
EAN: 4260074977486 | Kit allows connecting UPS in parallel, providint redundant backup or summed power capacity. ... |  |
USB Cable
Item Number: 91010011 | Additional communication cable ... | .jpg&w=150&h=350) |
RS-232 Cable
Item Number: 91010012 | Additional communication cable ... | .jpg&w=150&h=350) |
Anen SA120B2-H to Anen SA50B2-H
Item Number: 91015005 | Battery Pack cable for VFI CP 3/3 (1.5m) ... |  |
Anen SA175B2-H to Anen SA175B2-H
Item Number: 91015006 | Battery Pack cable for VFI CP 3/3 (1.5m) ... | |
Anen SA175B2-H to Anen SA120B2-H
Item Number: 91015007 | Battery Pack cable for VFI CP 3/3 (1.5m) ... | |
Anen SA175B2-H to Anen SA50B2-H
Item Number: 91015008 | Battery Pack cable for VFI CP 3/3 (1.5m) ... | |
BWT-B2-C
Item Number: 10140101 | Basic 2-year Service Contract
PowerWalker service contracts are designed to offer a preventive maintenance plan tailored to your individual needs and service-requirements. From initial visits, commissioning and on-site maintenances, our service contracts not only extend the life of the PowerWalker products but ensure their maximum performance.
Our authorized service partner is avail ... |  |
BWT-A3-C
Item Number: 10140103 | Advanced 3-year Service Contract
PowerWalker service contracts are designed to offer a preventive maintenance plan tailored to your individual needs and service-requirements. From initial visits, commissioning and on-site maintenances, our service contracts not only extend the life of the PowerWalker products but ensure their maximum performance.
Our authorized service partner is av ... | |
BWT-P3-C
Item Number: 10140105 | Premium 3-year Service Contract
PowerWalker service contracts are designed to offer a preventive maintenance plan tailored to your individual needs and service-requirements. From initial visits, commissioning and on-site maintenances, our service contracts not only extend the life of the PowerWalker products but ensure their maximum performance.
Our authorized service partner is ava ... | |
BWT-CM-C
Item Number: 10140108 | UPS Commissioning Service
PowerWalker service contracts are designed to offer a preventive maintenance plan tailored to your individual needs and service-requirements. From initial visits, commissioning and on-site maintenances, our service contracts not only extend the life of the PowerWalker products but ensure their maximum performance.
Our authorized service partner is available ... | |
Compare the product with other.
