Descrição do produto

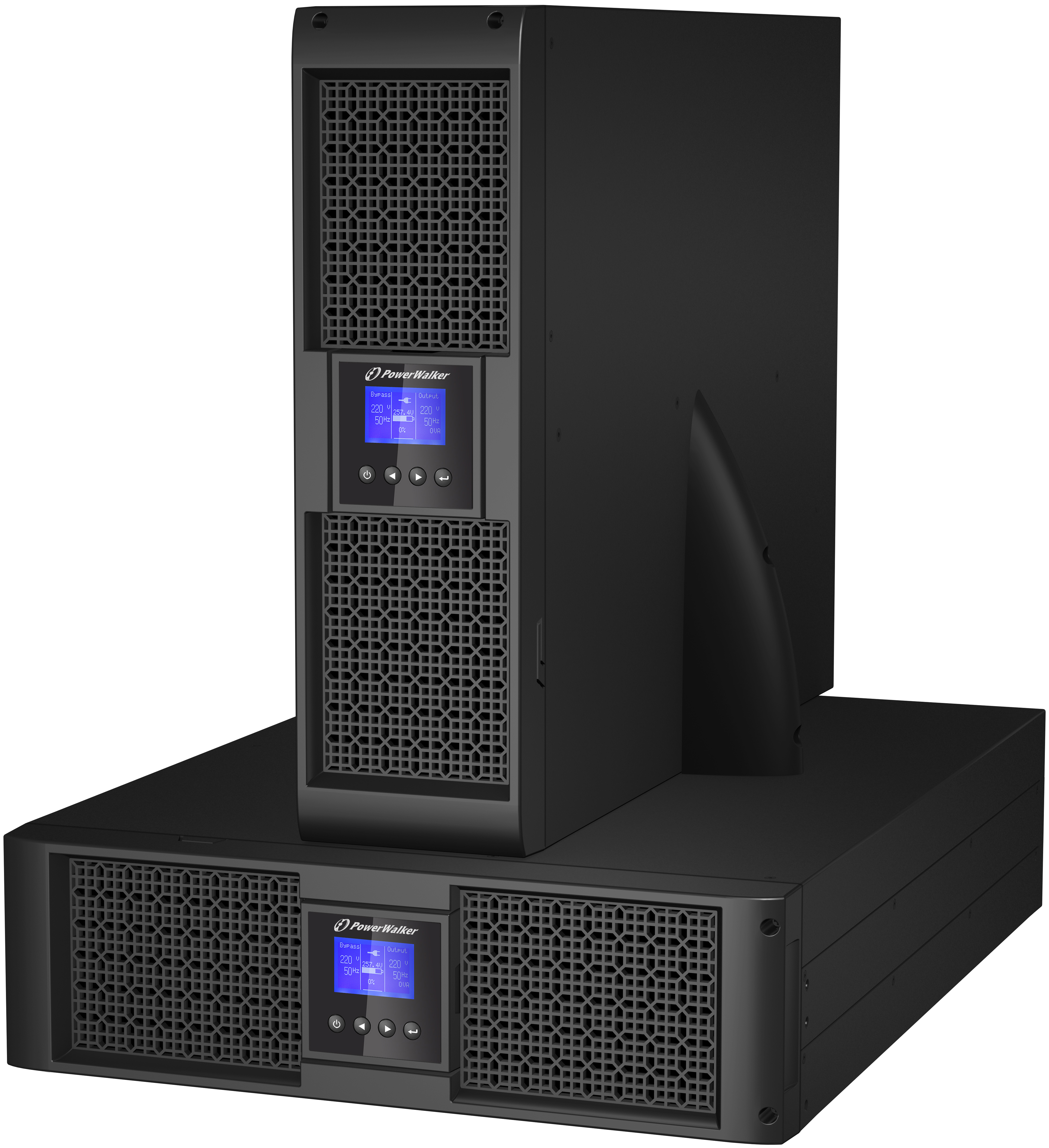

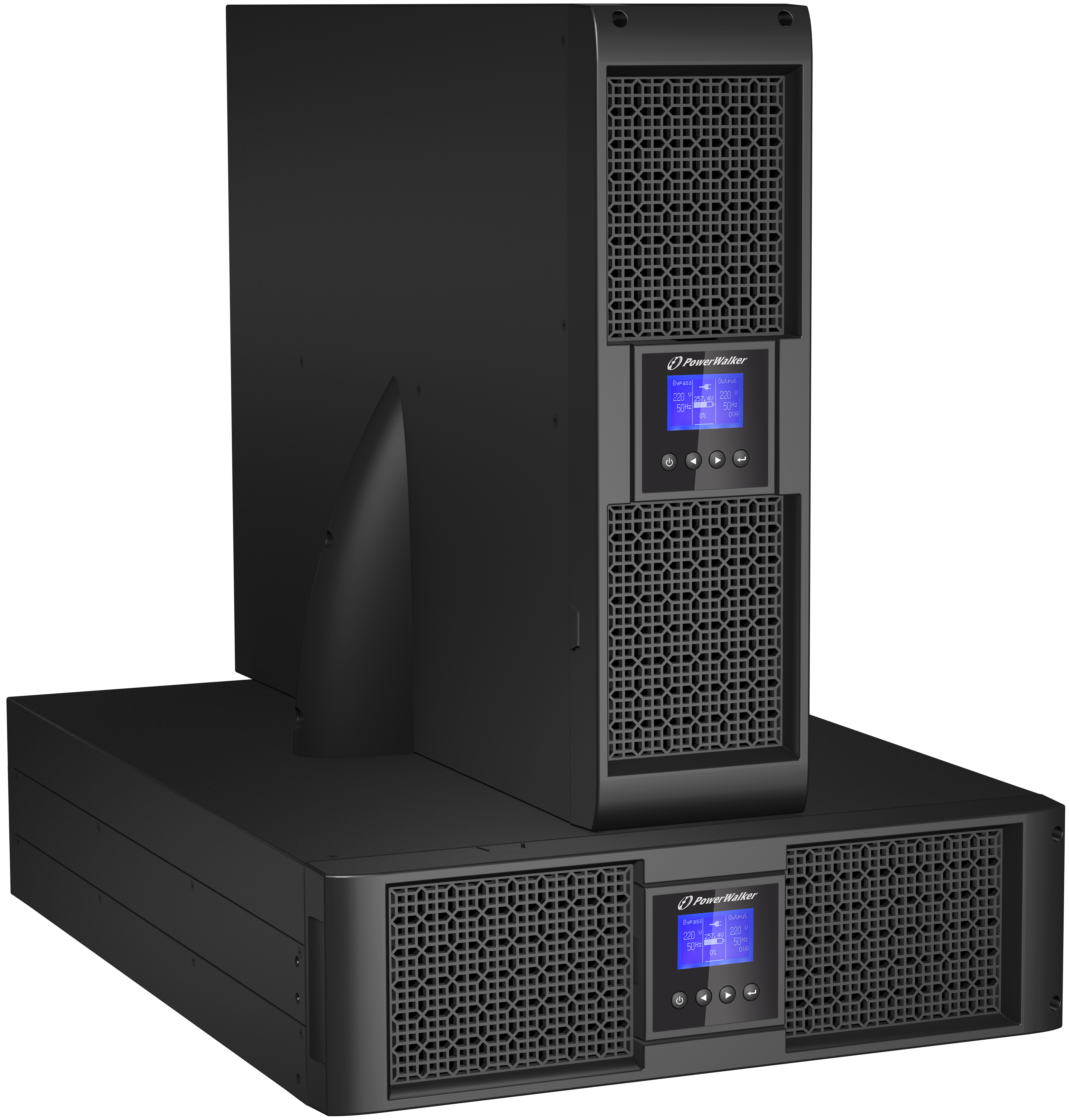

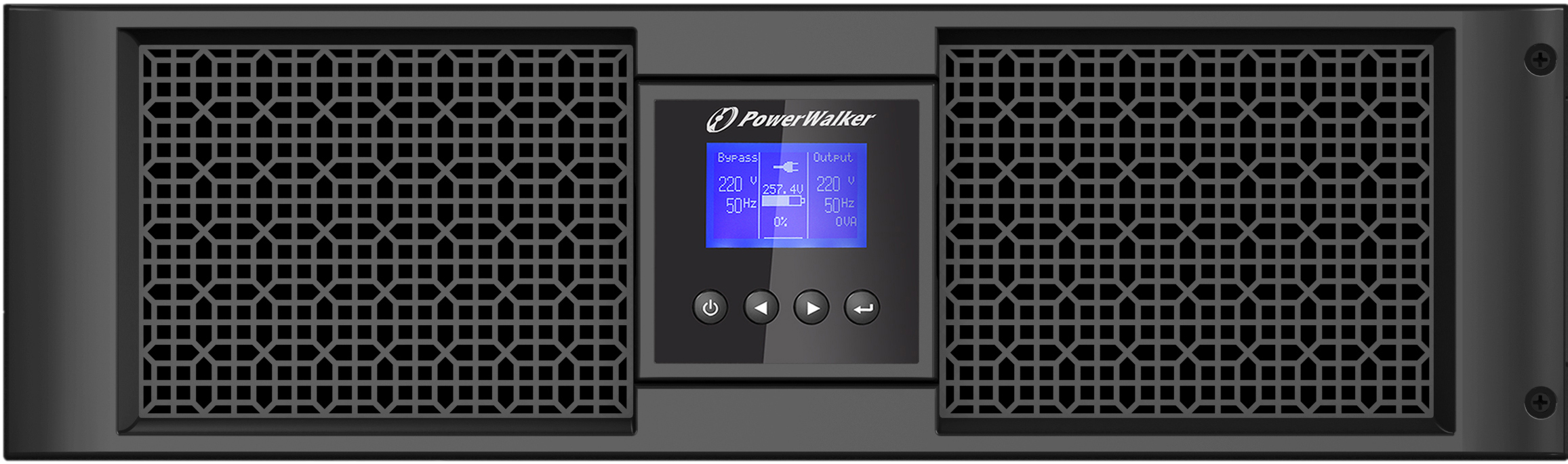

PowerWalker VFI 6000 PRT HID

Art-No: 10120130 EAN: 4260074974713 High efficiency results in energy saving with output power factor 0.9 Compact rack/tower design - 3U (6KVA) or 5U (10KVA) USB with Human Interface Device (HID) support and Intelligent Slot for communication cards Supports parallel operation 6000VA 10000VA

Características Gerais
Type	Online
Capacidade	6000VA / 5400W
Saída Fator de Potência	0.90
Input
Intervalo de tensão de entrada	120-276 VAC Depends on Load Level
Max THDi	≤5%
Input PF	≥ 0.99 at full load
Faixa de Freqüência	45Hz - 55Hz or 54Hz - 66Hz
Frequency (Synchronized Range)	45Hz - 55Hz or 54Hz - 66Hz
Output
Tensão nominal de saída	208/220/230/240 VAC
Onda sinusoidal pura	Yes
THDv	≤2% Full Linear Load; ≤5% Non-Linear Load
Regulação de tensão (Bat. Mod.)	±1%
Frequency (Battery Mode)	±0,1Hz
Trabalho paralelo	Up to 2 of the same size
Detalhes Técnicos
Load Crest Ratio	3:1
CVCF	Yes, but requires de-rating to 60%
Transfer Time [AC to Battery]	0ms
Transfer Time [Inverter to Bypass]	0ms
Transfer Time [Inverter to ECO]	1ms
Transfer Time [ECO to Inverter]	10ms
Bypass	Before UPS Power-on: Default “No” Change to “Yes” via display panel Overload und UPS Failure: Automatically transfer to bypass By Setting: Voltage Rang: 120-276V ± 3%
Generator support	Yes
Overload Capacity	2min @102%-130%; 30s @130%-150%; 100ms @ >150%
External Battery Connection	Yes
Charger	1A
Fan Logic	Always on, automatic speed control
LCD Indicators	UPS status, Load level, Battery level, Input/Output voltage, AC mode, battery mode, Bypass mode, fault conditions; LCD Display colour : Blue, red, red flashing (depends on UPS status), direction swappable (rack/tower)
Eficiência
LINE mode full Load	93.3%
BATTERY mode full Load	89.0%
Energy Star compliance	Yes
Baterias e tempo de autonomia
Batteries	15x 12V/5Ah
DC Voltage	15 x 12V
Recharge Time	3h to 90%
Full Load Backup Time	3.4min
Half Load Backup Time	9.8min
Ligações e comunicação
IEC C13 Outlet	4
IEC C19 Outlet	2
Terminal Output	1
Input	Terminal
Software	WinPower
USB port	Yes
HID Support	Yes
RS-232 Port	Yes
Extension Slot	Yes, 1
Dry Contacts	Yes
EPO Port	Yes
Ambiente
Nível de Ruído	< 45dB
Temperatura	0°C – 40°C
Humidade	0% - 95% RH (non-condensing)
Logística
IEC 62040-3 classification	VFI-SS-111
Package Content	UPS, Manual, USB Cable, 2x IEC Cable, Tower Holder, Rack Ears, EPO Plug, Parallel Communication Cable
Manual Languages	EN/PL/DE
EAN	4260074974713
Largura	438 mm
Altura	129 mm
Profundidade	698 mm
Peso	46 kg
Giftbox - Largura	955 mm
Giftbox - Altura	305 mm
Giftbox - Profundidade	578 mm
Giftbox - Peso	50 kg
Pcs. per box	1
Pcs. per layer	1
Pcs. per pal	7

Nome	Descrição do produto	Quadro
BP P180R-15x9Ah Item Number: 10120538 EAN: 4260074974676	BP uses empty housing number 10120582 Battery Pack for VFI 6000 PRT LCD (15x9Ah, 180VDC). Includes 1 string of 15 batteries, each 12V/9Ah capacity. Battery pack operates on 180VDC nominal voltage. Dimensions are H:129mm x W:438mm x D:606mm. Weight: 43,8kg. ...
EMD for NMC Card Item Number: 10120545 EAN: 4260074974973	EMD (environmental monitoring device) for NMC Card is a connectivity devices for remote monitoring of temperature and humidity. It provides dry contacts to communicate with compatible devices such as security system or alarm system. ...
AS400 Card 3 Item Number: 10120528 EAN: 4260074974577	AS/400 Cards provide clean dry contacts for remote shutdown and monitoring of a UPS. It is frequently used along with PLCs and signal control panels. Information delivered are UPS failure, Alarm, Main Fail, Bypass, Battery Low, UPS On. Using AS/400 it possible to shutdown UPS remotely. Solution requires external 12V/24VDC source for a high signal with max 1A. Dimensions are 146 x 60 x 1.6mm 70g ...
Rack Mount Kit - RK2 Item Number: 10120531 EAN: 4260074974607	The rack-mount kit can be extended to 780mm. This enables to install the rack- mount kit into server cabinets with already locked support frames. This kit is also suitable for server cabinet up to 1200mm depth with middle support frame. -Extendable from 490mm up to 780mm -Suitable for VFI 6000-10000 PRT Series -Dimensions: 550 x 140 x 70 mm, 3.1kg ...
Modbus Card Item Number: 10120564 EAN: 4260074975697	The PowerWalker Modbus Card is a communication accessory that provides a pair of RJ-45 interface for remote monitoring and controlling of UPSs. It converts standard RS232 signal to RS232 signal with specified address, which allows controlling many UPSs from one computer. You can setup a desired address with jumpers (range 0-255). Dimensions are 85 x 52 x 26 mm, 35g Modbus Card for: VFI T, VF ...
NMC Card Item Number: 10120517 EAN: 4260074974461	SNMP Cards offer IP Address and Web Interface for most convenient monitoring. SNMP modules allows remote monitor and manage multiple UPSs from anywhere with internet access. Integrated web access will leverage internet capability of SNMP card to remotely program or shut down UPSs. Equipped with SNMP card, power conditions of all UPSs can be monitored anytime/anywhere even through the UPS units are ...
Battery CSB HR1234W Item Number: 91010032 EAN: 4260074979435	12V / 9Ah high-discharge rate battery for online UPSs ...
Battery Set for VFI 6000P/RT LCD (for main unit) Item Number: 91010065 EAN: 4260074976199	...
USB Cable Item Number: 91010011	Additional communication cable ...
RS-232 Cable Item Number: 91010012	Additional communication cable ...
IEC Cable 10A C13/C14 (180cm) 0.75mm² Item Number: 91010013 EAN: 4260074976274	Additional power cable ...
IEC Cable 16A C19/C20 (180cm) Item Number: 91010028 EAN: 4260074976090	Additional power cable ...
IEC Cable 10A C13/C20 (180cm) Item Number: 91010041 EAN: 4260074975710	Additional power cable ...
IEC Cable 10A C14/TypeF Converter (20cm) Item Number: 91015003 EAN: 7340004644842	...

	Folha de dados
	PowerWalker VFI 6000-10000 PRT [DE] [EN] [PL]
