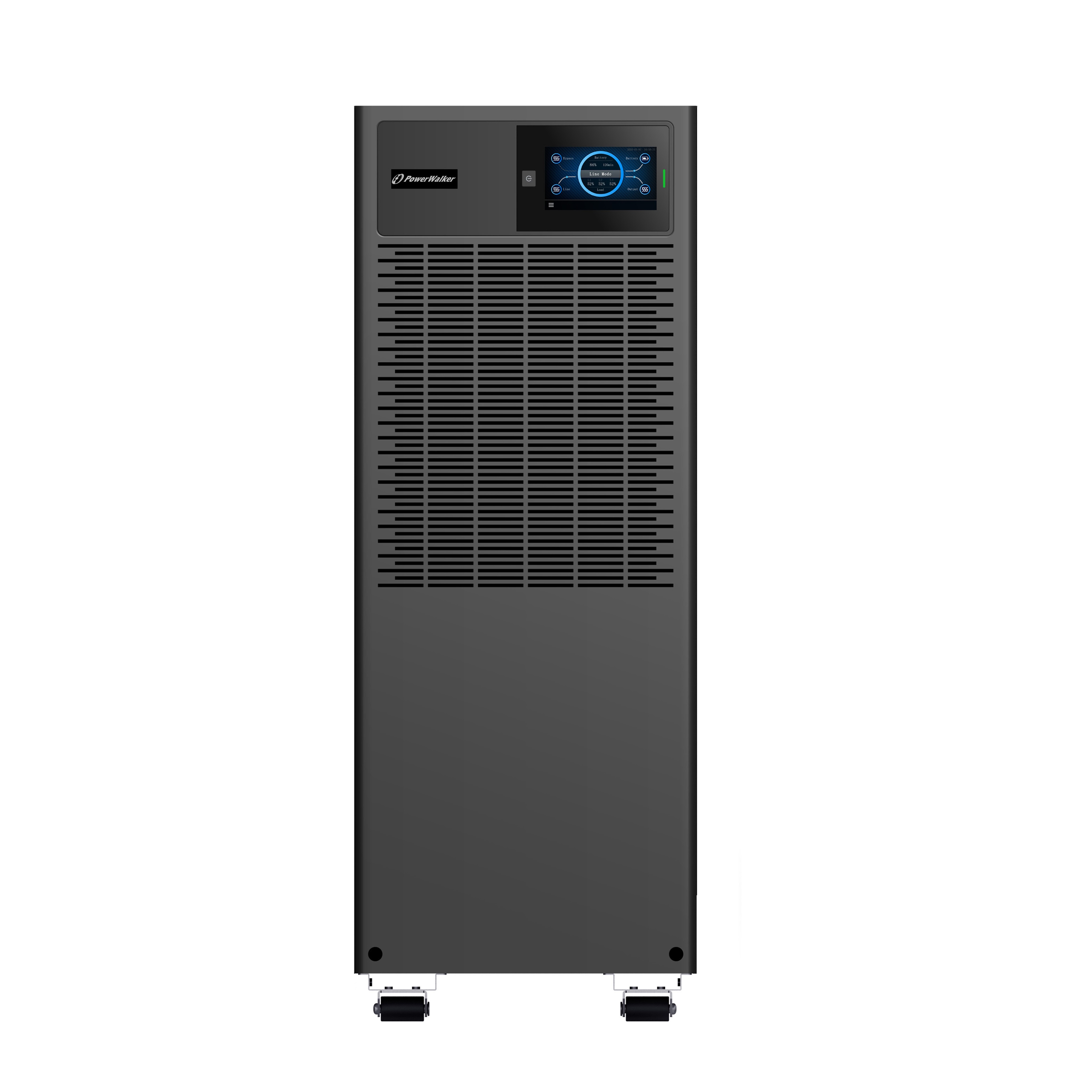

PowerWalker VFI 15000 ICT IoT 3/3 BI

Art-No: 10122222
EAN: 4260074983319

  • IOT Solution with Cloud Integration and WinPower App
  • Communication via LAN cable or WLAN Modem
  • Online technology with Power Factor 1.0
  • EBM Auto-Detection for easy setup of External Battery Packs
  • Optimized Battery Management (OBM) for a longer Battery Life
PowerWalker VFI 1-20K ICT/ICR IoT series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly – regardless of time and place. The data is uploaded to the cloud via an ethernet port (RJ-45) or an wireless adapter; all ICT/ICR IoT models have an ethernet connection port (RJ-45) on their back panel. This cloud-based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis.

This UPS series utilizes double conversion technology and features unity power factor, ensuring the availability of your mission-critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS. The series is available as: Online Single-Phase, Online Three-Phase to Single-Phase and Online Three-Phase.

Stay up to date everywhere and anytime


Características Gerais
TypeOnline
Capacidade15000VA / 15000W
Saída Fator de Potência1.00
Input
Intervalo de tensão de entrada190-520 VAC @ 0-50% load,
277-520 VAC @ 50-100% load
Dual InputYes
Input PF> 0.99 at full load
Faixa de Freqüência40Hz - 70Hz
Frequency (Synchronized Range)45Hz - 55Hz or 54Hz - 66Hz @ load>60%
Output
Tensão nominal de saída380/400/415 VAC (220/230/240 VAC (Ph-N))
Onda sinusoidal puraYes
THDv<1% linear load; <5% nonlinear load
Regulação de tensão (Bat. Mod.)±1%
Frequency (Battery Mode)±0,1Hz
Detalhes Técnicos
Load Crest Ratio3:8
CVCFYes, but requires de-rating to 60%
Transfer Time [AC to Battery]0ms
Transfer Time [Inverter to Bypass]0ms
Transfer Time [Inverter to ECO]10ms
Transfer Time [ECO to Inverter]10ms
Generator supportYes
Overload Capacity100%105%< load ≤125% for 10 minutes
125>150% for 500ms.
Charger1A - 13A
ProtectionOverload protection
Fan LogicAlways on, automatic speed control
LED IndicatorsOnline Mode, Battery Mode, Bypass Mode and Fault Mode

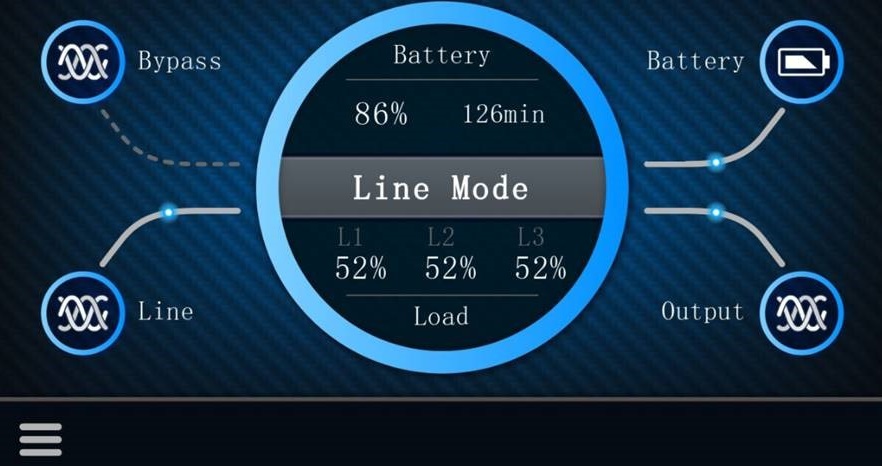

LCD IndicatorsAdvanced Touch Screen: Load level, Battery level, Input/Output voltage, UPS Status, Event Log, UPS Measurements, UPS Control, UPS Settings and UPS Identification (IoT connection required Information).
Eficiência
LINE mode full Load96.0%
Baterias e tempo de autonomia
Batteries40x 12V/7Ah
DC Voltage40 x 12V
Recharge Time3h to 90%
Full Load Backup Time4.18min
Half Load Backup Time9.83min
Ligações e comunicação
Terminal Output1
InputTerminal
SoftwareWinPower
USB portYes
HID SupportYes
RS-232 PortYes
Extension SlotYes, 1
Dry ContactsYes
EPO PortYes
Ambiente
Nível de Ruído< 55dB
Temperatura0°C – 40°C
Humidade0% - 95% RH (non-condensing)
Logística
IEC 62040-3 classificationVFI-SS-111
Manual LanguagesEN
EAN4260074983319
Largura300 mm
Altura805 mm
Profundidade633 mm
Peso140.4 kg
Giftbox - Largura475 mm
Giftbox - Altura1020 mm
Giftbox - Profundidade815 mm
Giftbox - Peso153.4 kg
Pcs. per box1
