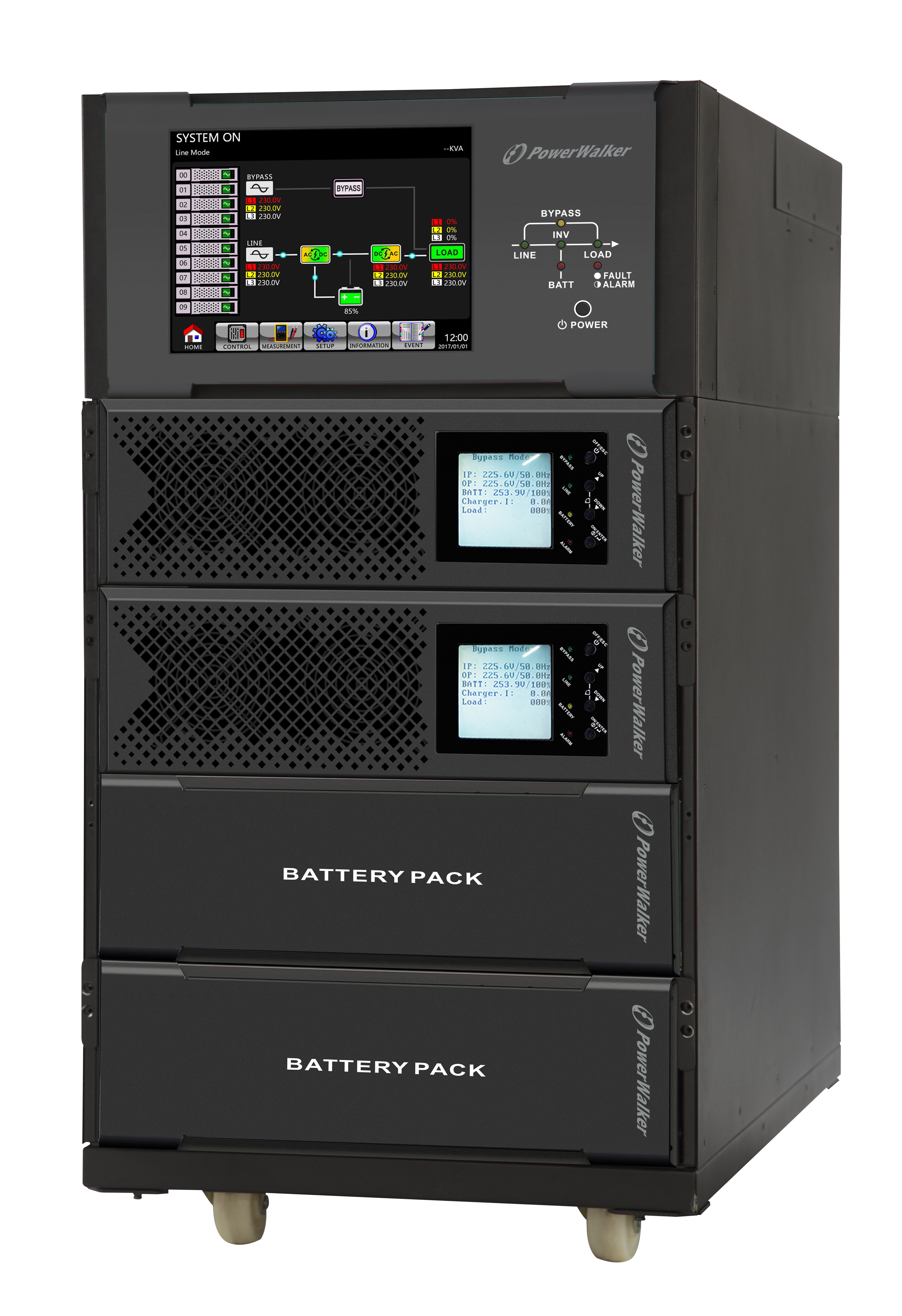

PowerWalker VFI 20K CPH 3/3 (17U Solution)
Especificação Técnica
Acessórios
Downloads
Similar Models Compatible products
Características Gerais Type Online Capacidade 20000VA / 20000W Saída Fator de Potência 1.00 Input Intervalo de tensão de entrada 190-520 VAC (3-phase) @ 50% load; 305-478 VAC (3-phase) @ 100% load Max THDi < 5% @ full linear load Input PF >0.99 @ full load Faixa de Freqüência 40Hz - 70Hz Frequency (Synchronized Range) 46Hz - 54Hz or 56Hz - 64Hz Output Tensão nominal de saída 360VAC/380VAC/400VAC/415VAC (3Ph+N) Onda sinusoidal pura Yes THDv ≤2% Full Linear Load; ≤4% Non-Linear Load Regulação de tensão (Bat. Mod.) ±1% Frequency (Battery Mode) ±0,1Hz Detalhes Técnicos Load Crest Ratio 3:1 CVCF Yes, but requires de-rating to 60% Transfer Time [AC to Battery] 0ms Transfer Time [Inverter to Bypass] 0ms Generator support Yes External Battery Connection Yes Charger 4A Fan Logic Always on, automatic speed control LCD Indicators UPS status, Load level, Battery level, Input / Output voltage, Discharge timer, and Fault conditions Eficiência LINE mode full Load 94.0% BATTERY mode full Load 93.5% Baterias e tempo de autonomia Batteries 2x32x 12V/5Ah DC Voltage 32 x 12V Ligações e comunicação Terminal Output 1 Input Terminal Software ViewPower USB port Yes Extension Slot Yes, 1 EPO Port Yes Ambiente Nível de Ruído < 55dB Temperatura 0°C – 40°C Humidade 0% - 95% RH (non-condensing) Logística IEC 62040-3 classification VFI-SS-111 Manual Languages EN EAN 0 Pcs. per box 1 Pcs. per pal 1
Nome Descrição do produto Quadro SNMP Manager SNMP Cards offer IP Address and Web Interface for most convenient monitoring. SNMP modules allows remote monitor and manage multiple UPSs from anywhere with internet access. Integrated web access will leverage internet capability of SNMP card to remotely program or shut down UPSs. Equipped with SNMP card, power conditions of all UPSs can be monitored anytime/anywhere even through the UPS units are ...
