Descrição do produto

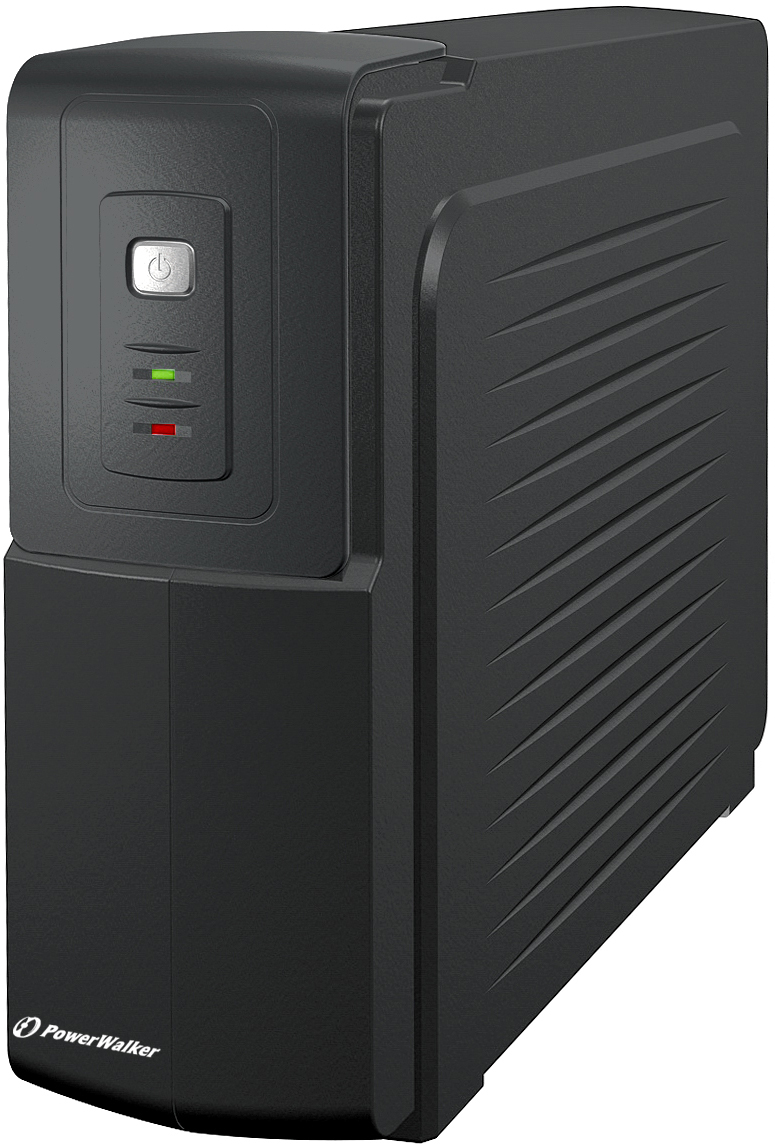

PowerWalker VFD 600 (CEE 7/3)

Art-No: 10120401
EAN: 4260074970562

Surge protection on phone line and modem
Type F (CEE 7/3) sockets
Highly compact and lightweight

PowerWalker VFD 600-1000 CEE 7/3 Series is a standby/offline UPS which provides secure protection and reliable and cost-effective backup power. The UPS can be automatically started up without AC power supplied. In addition, this UPS provides RJ11/RJ45 surge protection, and green power function for energy saving. Its pro-active audible warning reminds you the abnormal condition and ensures your connected equipment. This UPS provides clean and stable power protection to connected equipment and is perfect for home and small office application.

Type F

600VA

1000VA

Características Gerais
Type	Offline
Capacidade	600VA / 300W
Saída Fator de Potência	0.50
Input
Intervalo de tensão de entrada	170-280 VAC
Frequency (Synchronized Range)	50Hz or 60Hz
Output
Tensão nominal de saída	230 VAC
Regulação de tensão (Bat. Mod.)	±10%
Frequency (Battery Mode)	±1Hz
Detalhes Técnicos
Transfer Time [AC to Battery]	2-6ms
Overload Capacity	N/A
LED Indicators	AC Mode: Green LED Battery Mode: Green LED flashing (4sec interval) Low Battery: Green LED flashing (1sec interval) Fault: RED LED Battery weak: RED LED flashing (2sec interval) Battery faulty: RED LED flashing (3x interval)
Eficiência
LINE mode full Load	99.0%
Baterias e tempo de autonomia
Batteries	1x 12V/7Ah
DC Voltage	1 x 12V
Recharge Time	10h to 90%
Full Load Backup Time	1min
Half Load Backup Time	7.5min
Ligações e comunicação

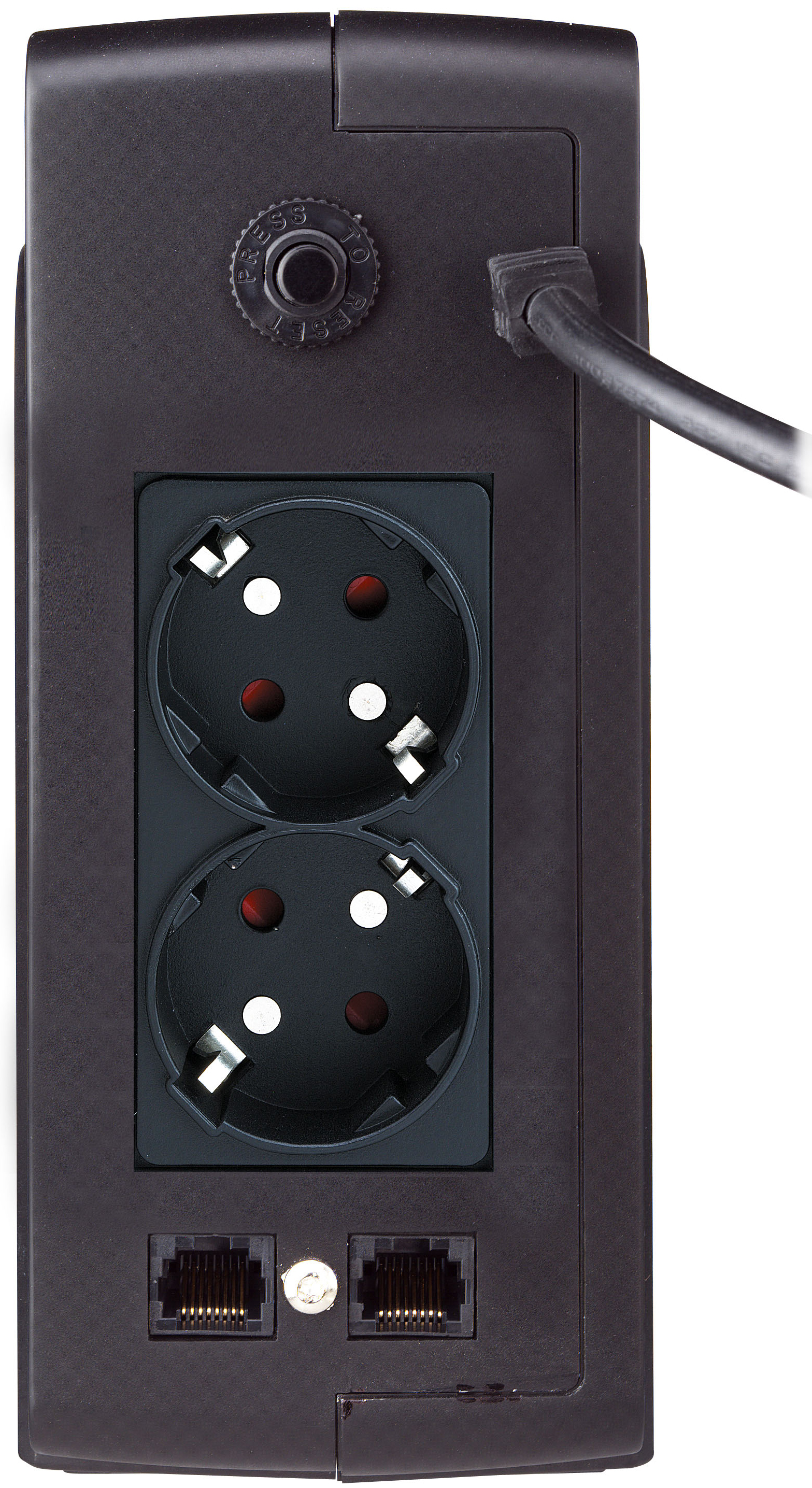

CEE 7/3 (Type F) Outlet	2
Input	CEE 7/7
RJ-45/RJ-11 protection	Yes
Ambiente
Nível de Ruído	No Fan
Temperatura	0°C – 40°C
Humidade	0% - 90% RH (non-condensing)
Logística
Package Content	UPS, Manual
Manual Languages	EN/DE/FR/ES/IT/PT/SE/FI/NO/TR/RU/UA/BY/PL/CZ/HR/HU/BG/KZ/SR
EAN	4260074970562
Largura	81 mm
Altura	185 mm
Profundidade	231 mm
Peso	3.8 kg
Giftbox - Largura	126 mm
Giftbox - Altura	224 mm
Giftbox - Profundidade	285 mm
Giftbox - Peso	3.8 kg
Carton - Largura	580 mm
Carton - Altura	402 mm
Carton - Profundidade	250 mm
Carton - Peso	11.5 kg
Pcs. per box	6
Pcs. per layer	24
Pcs. per pal	192

Nome	Descrição do produto	Quadro
ATS Item Number: 10120543 EAN: 4260074974959	PowerWalker ATS (Automatic Transfer Switch) also known as STS (Static Transfer Switch) is designed with two independent power inlets to supply power to the load from primary power source. Should primary power source fail, the secondary will automatically backup the connected equipment without any interruption. The transfer time from one to another is seamless to the connected equipment. After swit ...
MBS/PDU Tower 1-3kVA Item Number: 10120500 EAN: 4260074973082	An external Maintenance Bypass Switch with function of a PDU (Power Distribution Unit). It provides continuous power without shutting down the connected loads during UPS scheduled maintenance or battery replacement. As a PDU it allows to distribute the power among several loads. It is rated up to 3000VA. ...
MBS/PDU IEC 1-3kVA Item Number: 10133000 EAN: 4260074978025	An external Maintenance Bypass Switch with function of a PDU (Power Distribution Unit). It provides continuous power without shutting down the connected loads during UPS scheduled maintenance or battery replacement. As a PDU it allows to distribute the power among several loads. It is rated up to 3000VA. ...
PWB12-7 Item Number: 91010090 EAN: 4260074978131	7Ah general purpose battery. PowerWalker PWB12 battery series is designed to work with UPS solutions. It is a high quality valve-regulated lead acid battery with high corrosion resistance and special exhaust structure. The sealing technology with high discharge capacity offers long life, reliability and safety. Batteries are flexible for installation and maintenance and easy to handle. < ...
PWB12-9 Item Number: 91010091 EAN: 4260074978148	9Ah general purpose battery. PowerWalker PWB12 battery series is designed to work with UPS solutions. It is a high quality valve-regulated lead acid battery with high corrosion resistance and special exhaust structure. The sealing technology with high discharge capacity offers long life, reliability and safety. Batteries are flexible for installation and maintenance and easy to handle. < ...
IEC Cable 10A C13/C14 (180cm) 0.75mm² Item Number: 91010013 EAN: 4260074976274	Additional power cable ...
EU Input Power Cable C19 Item Number: 91010018 EAN: 4260074976458	Additional power cable ...
IEC Cable 16A C19/C20 (180cm) Item Number: 91010028 EAN: 4260074976090	Additional power cable ...
UK Input Power Cable C19 (180cm) Item Number: 91010030 EAN: 4260074975833	Additional power cable ...
IEC Cable 10A C13/C20 (180cm) Item Number: 91010041 EAN: 4260074975710	Additional power cable ...
IEC Cable 10A C14/TypeF Converter (20cm) Item Number: 91015003 EAN: 7340004644842	...

	Folha de dados
	Common Manual - Portugal
	Common Manual [DE] [DK] [EN] [ES] [FI] [FR] [IT] [NL] [NO] [PL] [PT] [RO] [RU] [SE] [SI]
	PowerWalker VFD 600-1000 - Portugal
	PowerWalker VFD 600-1000 [BG] [BY] [CZ] [DE] [EN] [ES] [FI] [FR] [HR] [HU] [IT] [KZ] [NO] [PL] [PT] [RU] [SE] [SR] [TR] [UA]

Compare

Compare the product with other.

Similar Models

Similar models from different series:

Basic VI 600 STL	600VA	Internal Batteries Included	No Battery Connector
Basic VI 650 SB	650VA	Internal Batteries Included	No Battery Connector
VI 600 CSW	600VA	Internal Batteries Included	No Battery Connector
VI 600 SW	600VA	Internal Batteries Included	No Battery Connector
VI 650 GX	650VA	Internal Batteries Included	No Battery Connector
VI 650 LCD	650VA	Internal Batteries Included	No Battery Connector
VI 650 SH	650VA	Internal Batteries Included	No Battery Connector
VI 650 SHL	650VA	Internal Batteries Included	No Battery Connector
VI 600 SCL	600VA	Internal Batteries Included	No Battery Connector
VI 600 MS	600VA	Internal Batteries Included	No Battery Connector
VFD 600 (CEE 7/3)	600VA	Internal Batteries Included	No Battery Connector
VFD 600 APFC	600VA	Internal Batteries Included	No Battery Connector

Série do produto

Other models in this series:

	VFD 600 (CEE 7/3)	600VA	Internal Batteries Included	No Battery Connector
	VFD 1000 (CEE 7/3)	1000VA	Internal Batteries Included	No Battery Connector
