Descrição do produto

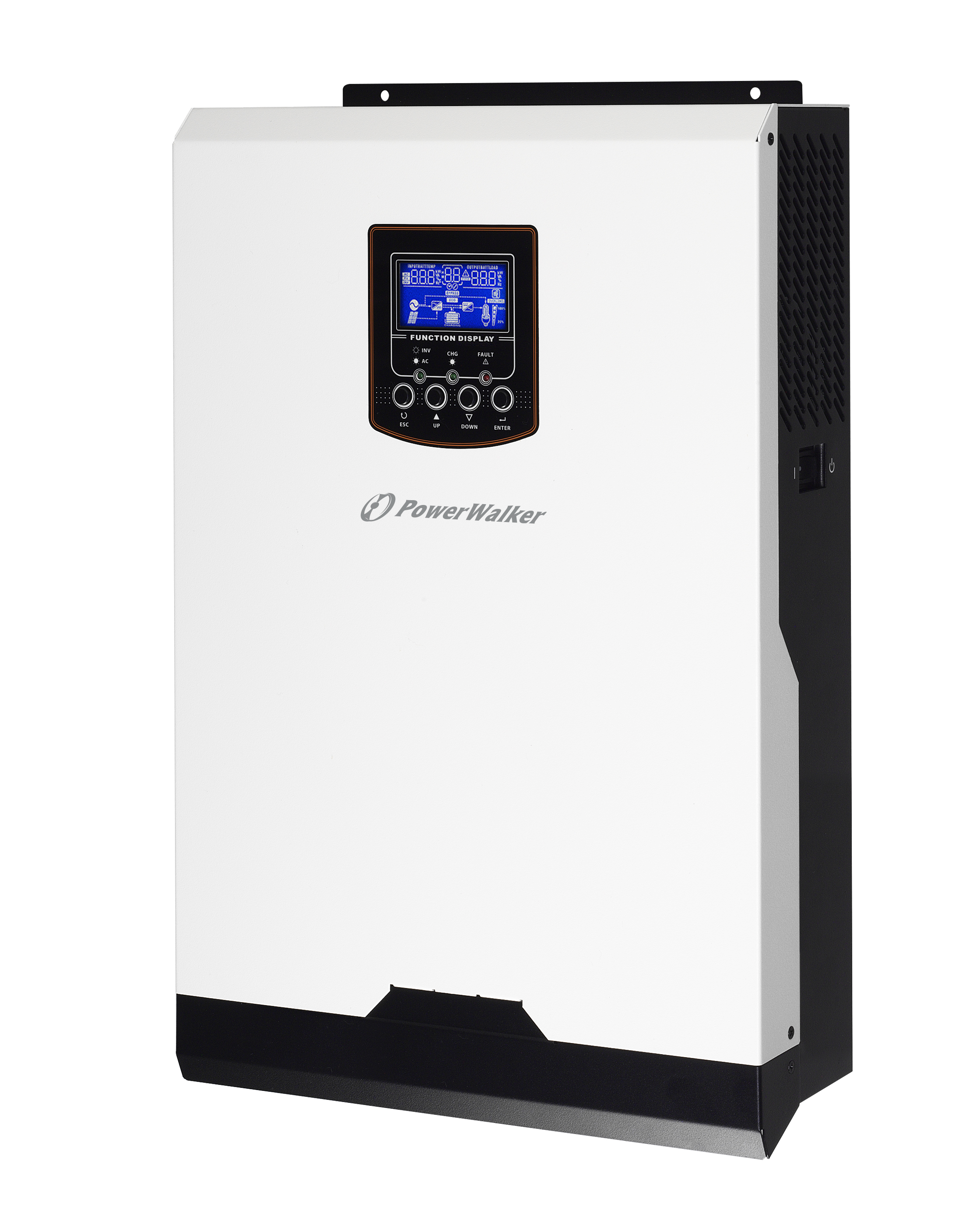

PowerWalker Inverter 5000 PWM

Art-No: 10120225
EAN: 4260074983005

Pure Sine Wave for wide range of applications and harsh environment
Output Power Factor 1.0
Strong Configurable AC/Solar Charger
Smart Battery Charger Design for optimized Battery Performance
Generator compatible

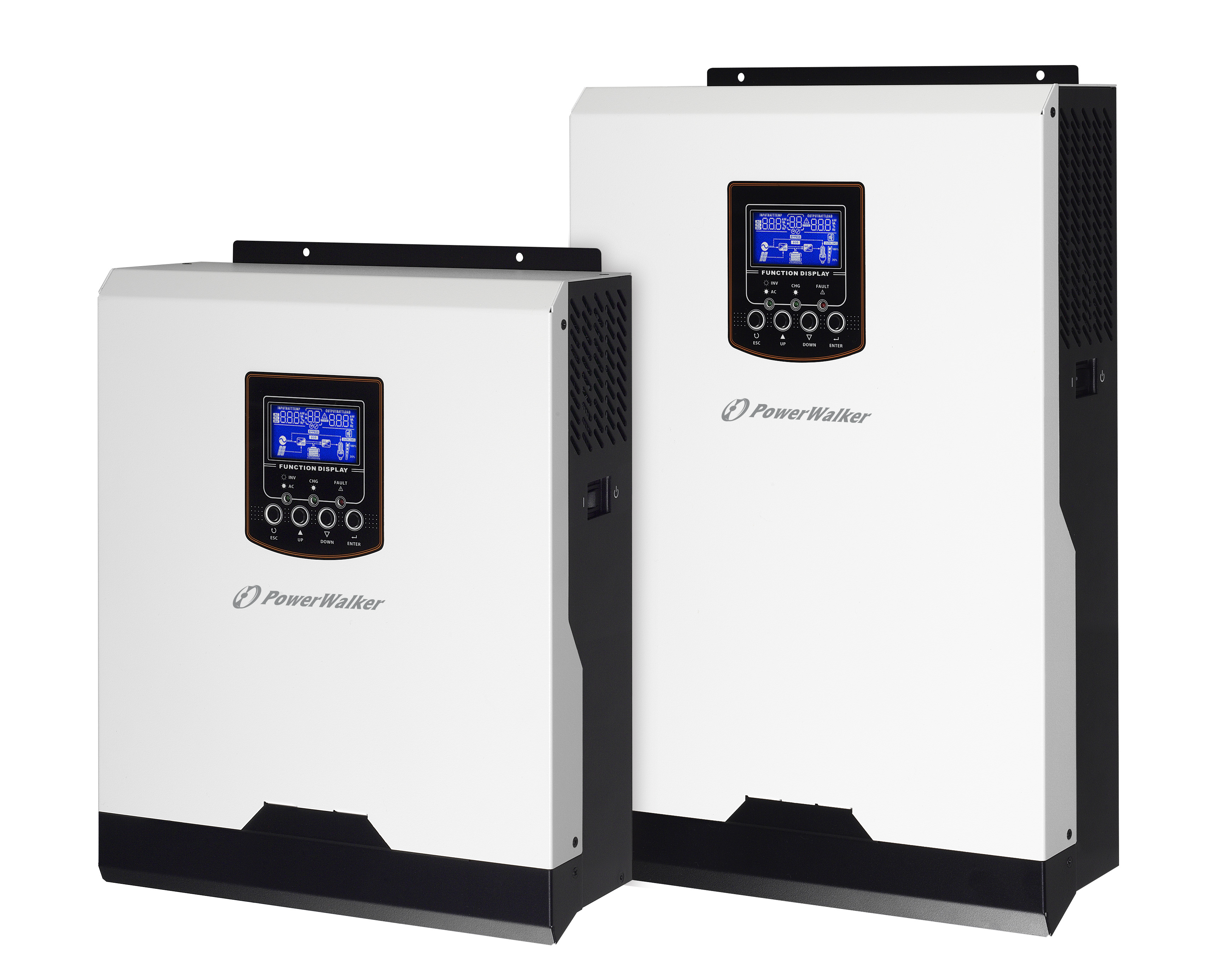

PowerWalker Inverter 3000-5000 PWM series is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

3000VA

5000VA

Características Gerais
Type	Inverter
Capacidade	5000VA / 5000W
Saída Fator de Potência	1.00
Input
Intervalo de tensão de entrada	170-280 VAC or 90-280 VAC
Faixa de Freqüência	50Hz or 60Hz (self-adaptive)
Frequency (Synchronized Range)	50Hz or 60Hz
Output
Tensão nominal de saída	230 VAC
Onda sinusoidal pura	Yes
Regulação de tensão (Bat. Mod.)	±5%
Detalhes Técnicos
Transfer Time [AC to Battery]	10ms normal range; 20ms wide range
Generator support	Yes
External Battery Connection	Yes
Charger	Battery Voltage: 48VDC Floating Charge Voltage: 54VDC
Protection	Overcharge Protection 63VDC
LED Indicators	AC/Solar or Battery: Solid Green Light/ Flashing Green Light Battery is Fully charged/ is charging: Solid Green Light/ Flashing Green Light Fault in the Inverter/ Warning Condition: Solid Red Light/ Flashing Red Light
LCD Indicators	Input, Battery, Temperature, Output and Load Information. Charging Mode, Line Mode and Battery Mode Information.
Eficiência
LINE mode full Load	96.6%
BATTERY mode full Load	88.2%
Baterias e tempo de autonomia
Batteries	Designed to work with external batteries. Batteries are not included
DC Voltage	4 x 12V
Ligações e comunicação
Terminal Output	1
Input	Terminal
Software	WatchPower
USB port	Yes
RS-232 Port	Yes
Ambiente
Temperatura	Operating Temp.: -10°C – 50°C Storage Temp.: -1
Humidade	5% - 95% RH (non-condensing)
Logística
Package Content	Inverter, Manual, USB Cable, Ring Terminal, 2x Strain Relief Plate, 4x Screws and Software CD
Manual Languages	EN
EAN	4260074983005
Largura	300 mm
Altura	440 mm
Profundidade	100 mm
Peso	8.5 kg
Giftbox - Largura	400 mm
Giftbox - Altura	220 mm
Giftbox - Profundidade	600 mm
Pcs. per box	1
Pcs. per layer	5

No accessories available

	Folha de dados
	PowerWalker Inverter 3000-5000 PWM [EN]
	Software

Compare

Compare the product with other.

Similar Models

Similar models from different series:

Inverter 5000 PWM

5000VA

No Internal Batteries

Connector for External Batteries

Série do produto

Other models in this series:

	Inverter 3000 PWM	3000VA	No Internal Batteries	Connector for External Batteries
	Inverter 5000 PWM	5000VA	No Internal Batteries	Connector for External Batteries
