Descrição do produto

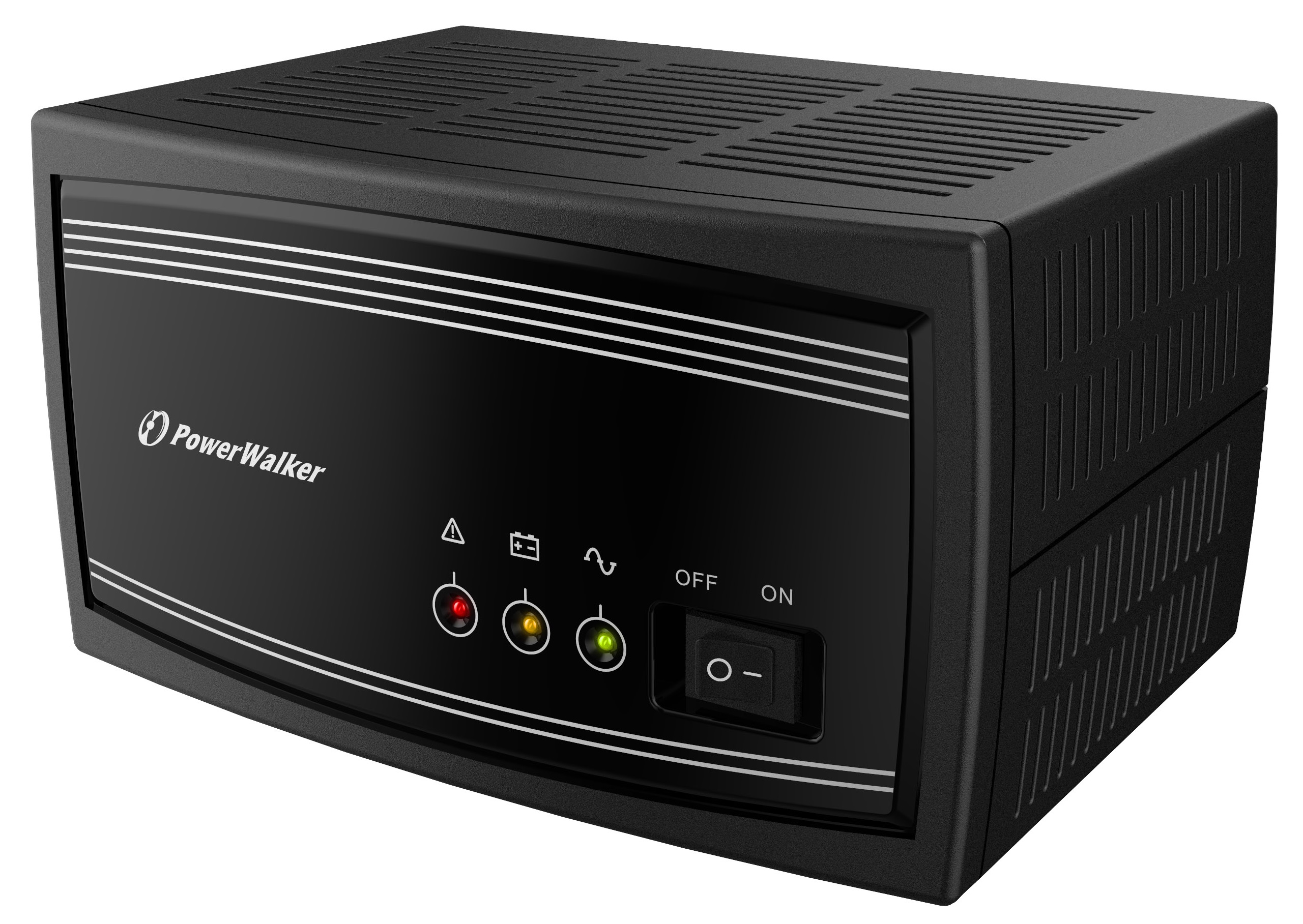

PowerWalker Inverter 650 SW FR

Art-No: 10120221
EAN: 4260074981117

Pure Sine Wave for wide range of applications and harsh environment
Compact and lightweight
Smart battery charger to extend battery life with intelligent fan control for reduced noise level

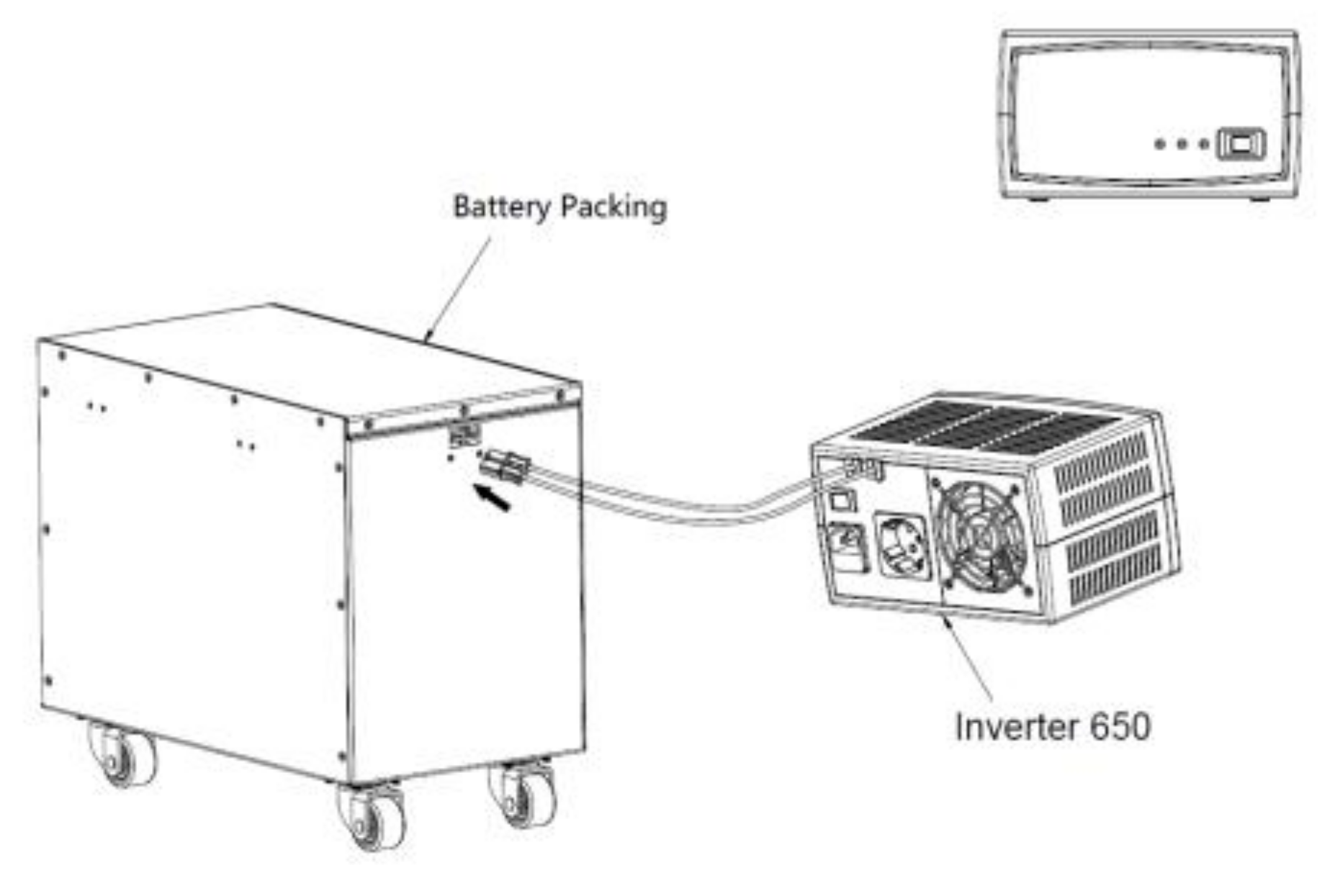

Dedicated Battery Packs available with 55Ah and 100Ah batteries

PowerWalker Inverter SW is a lightweight home solution for long power failures. Although not apparent, it offers advanced functions like Pure Sine Wave output delivering high-quality protection for your home appliance. It is paired with dedicated battery packs, available with different battery sizes, which can supply energy for long hours of work in case of power failure.

Type E

Type F

650VA

Características Gerais
Type	Inverter
Capacidade	650VA / 325W
Saída Fator de Potência	0.50
Input
Intervalo de tensão de entrada	190-260 VAC (narrow range) 100-280 VAC (wide range)
Faixa de Freqüência	50Hz or 60Hz (self-adaptive)
Frequency (Synchronized Range)	50Hz or 60Hz
Output
Tensão nominal de saída	230 VAC
Onda sinusoidal pura	Yes
THDv	<2% @ linear load
Regulação de tensão (Bat. Mod.)	±10%
Frequency (Battery Mode)	±1Hz
Detalhes Técnicos
Transfer Time [AC to Battery]	14ms typical
Generator support	Yes
Overload Capacity	N/A
Charger	15A
Eficiência
LINE mode full Load	95.0%
Energy Star compliance
Baterias e tempo de autonomia
Batteries	Designed to work with external batteries. Batteries are not included
DC Voltage	1 x 12V
Ligações e comunicação
CEE 7/3 (Type F) Outlet	1
Input	C14
Ambiente
Nível de Ruído	< 45dB
Temperatura	0°C – 40°C
Humidade	0% - 95% RH (non-condensing)
Logística
Manual Languages	EN/PL
EAN	4260074981117
Largura	146 mm
Altura	205 mm
Profundidade	113 mm
Peso	4 kg
Giftbox - Largura	194 mm
Giftbox - Altura	241 mm
Giftbox - Profundidade	184 mm
Carton - Largura	406 mm
Carton - Altura	504 mm
Carton - Profundidade	209 mm
Pcs. per box	4

Nome	Descrição do produto	Quadro
PWB12-55L Item Number: 91010141 EAN: 4260074981506	55Ah general purpose battery. PowerWalker PWB12 battery series is designed to work with UPS solutions. It is a high quality valve-regulated lead acid battery with high corrosion resistance and special exhaust structure. The sealing technology with high discharge capacity offers long life, reliability and safety. Batteries are flexible for installation and maintenance and easy to handle. ...
BP CE12T-1x100Ah Item Number: 10134041 EAN: 4260074981148	BP uses empty housing number 10135033 Battery Pack for Inverter SW. Includes 100Ah/12V battery. ...
BP CE12T-1x55Ah Item Number: 10134042 EAN: 4260074981155	BP uses empty housing number 10135033 Battery Pack for Inverter SW. Includes 55Ah/12V battery. ...
BP Cable for Inverter SW Item Number: 91015045 EAN: 4260074981261	Battery Pack cable fro Inverter SW Series. ...

	Folha de dados
	Common Manual - Portugal
	Common Manual [DE] [DK] [EN] [ES] [FI] [FR] [IT] [NL] [NO] [PL] [PT] [RO] [RU] [SE] [SI]
	PowerWalker Inverter SW [EN] [PL]

Compare

Compare the product with other.

Similar Models

Similar models from different series:

	AVR 600	600VA	No Internal Batteries	No Battery Connector
	Inverter 650 SW FR	650VA	No Internal Batteries	No Battery Connector

Série do produto

Other models in this series:

	Inverter 650 SW	650VA	No Internal Batteries	No Battery Connector
	Inverter 650 SW FR	650VA	No Internal Batteries	No Battery Connector
